HB Series

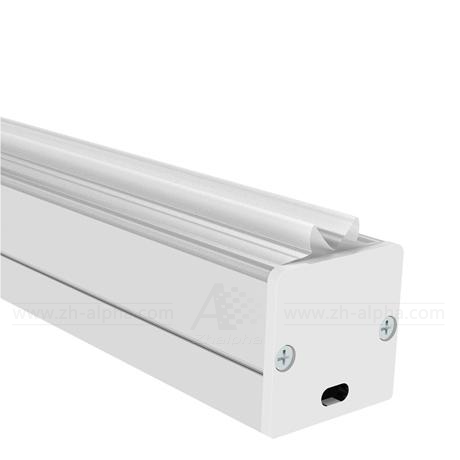

Application: For construction of surface mounted or suspension fixtures with a focused beam of light
Features
AL6063-T5 aluminum profile with high quality anodizing surface treatment
Smooth beam blends(removed yellow light) lens enabling different lighting angles.

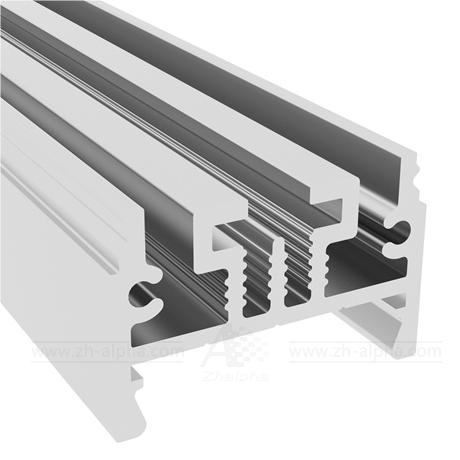

Aluminum profile is shared to make different beam angles.
Installation could be suspension or mounting brackets.
Descriptions
Dimensions | W27*H25MM |
Material | AL6063-T5 Aluminum + PMMA |

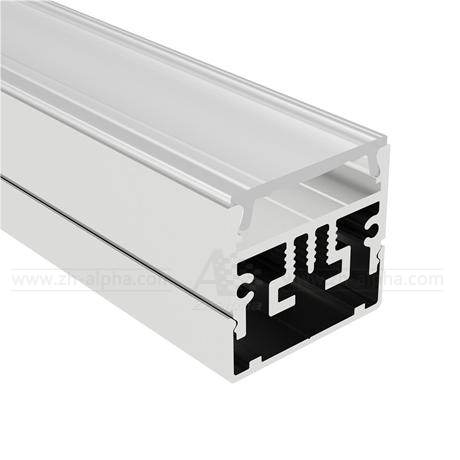

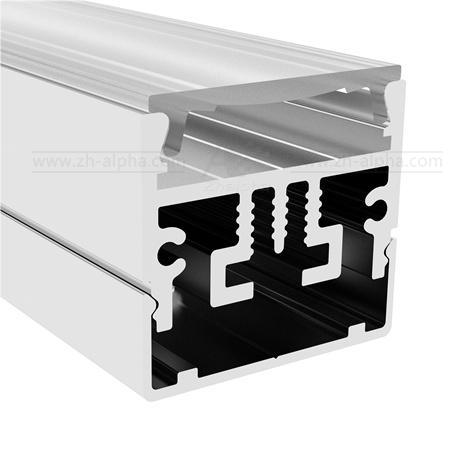

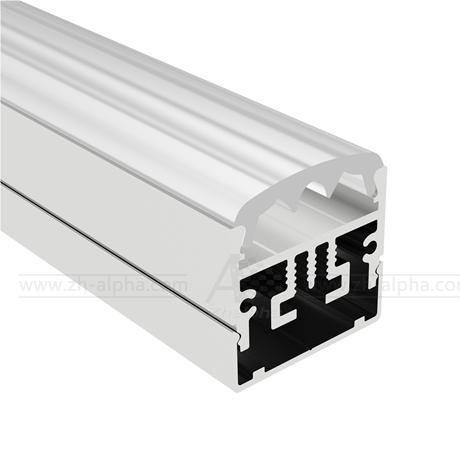

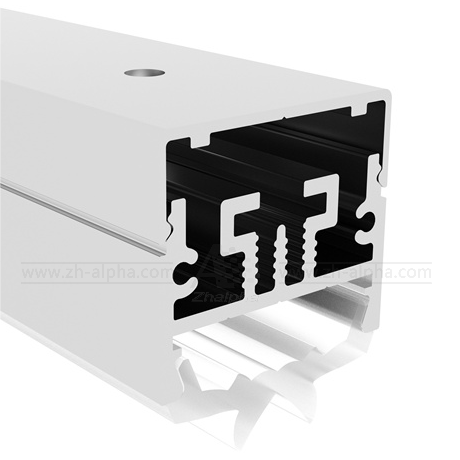

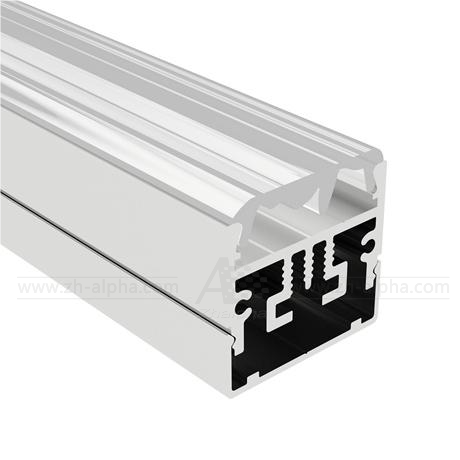

Lens Options | 60° / 90° / 110° / 150° / SA20° / Double Asymmetric 90° / Double Asymmetric160° |
Transmittance | 88%-92% |
Light Source | SMD2835 / 3030 / 3535 2700-6500K |
Aluminum Surface | Silver Anodized / Black / White / Customized |
Application | Linear light; Wall Grazer light |
Feature | High light transmittance; Smooth beams blend |
Installation Options | Surface or Suspension |
| Standard Length | 3 meters, other length could be custom |
Usually one meter contains the following items:
Aluminum profile x 1 pieces
Lens x 1 pieces
Endcap x 2 pieces
Mounting kit x 1 Set
Installation Options

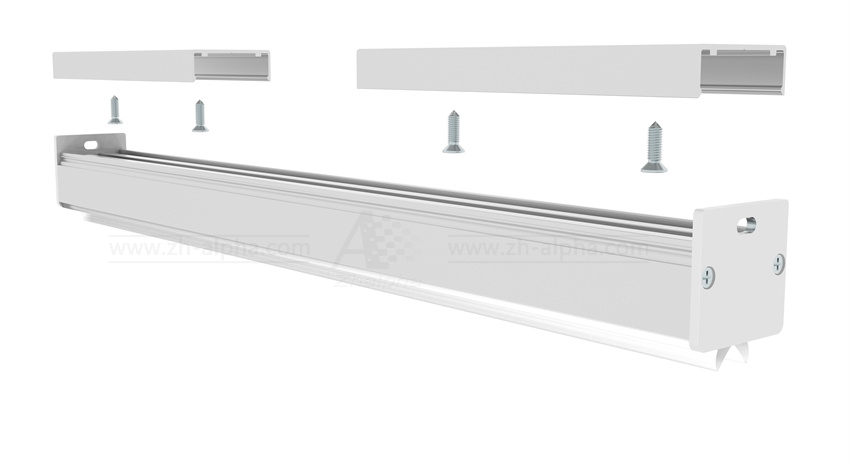

Surface Mounting

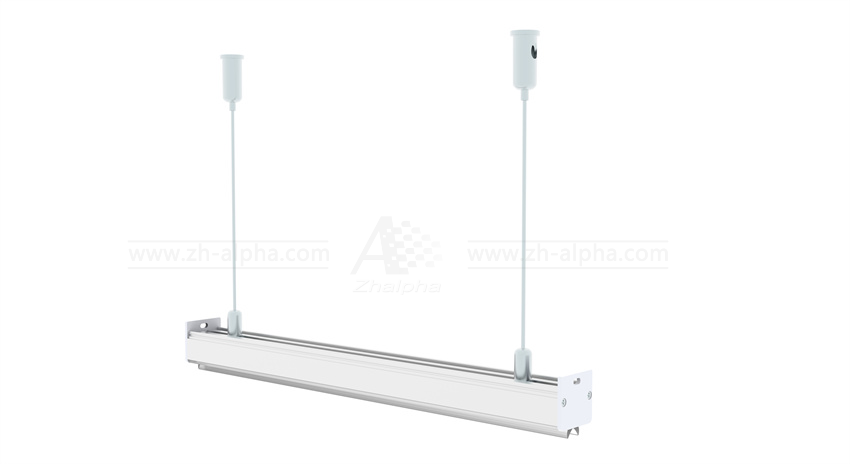

Suspension Mounting

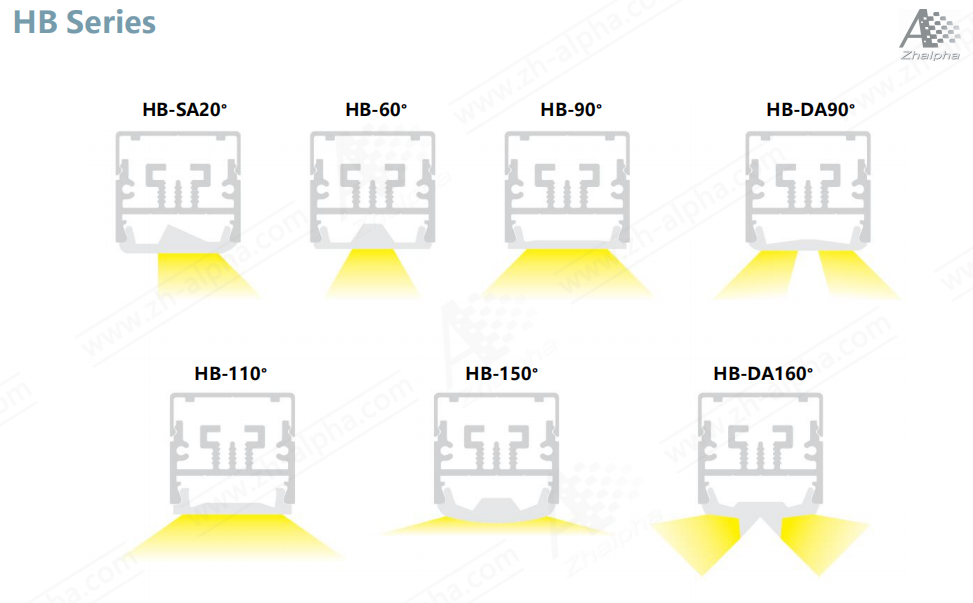

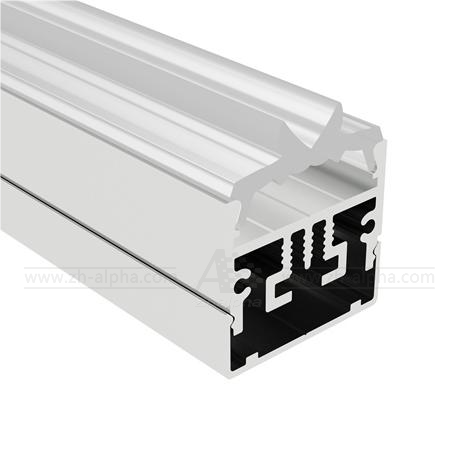

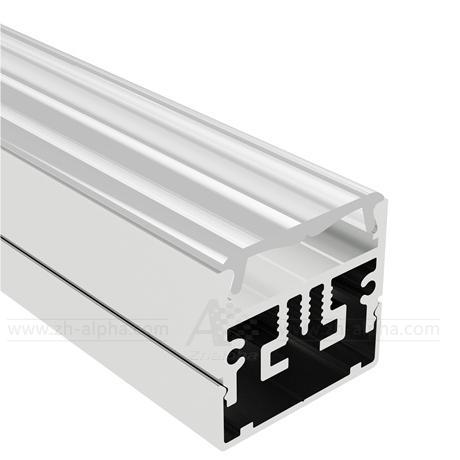

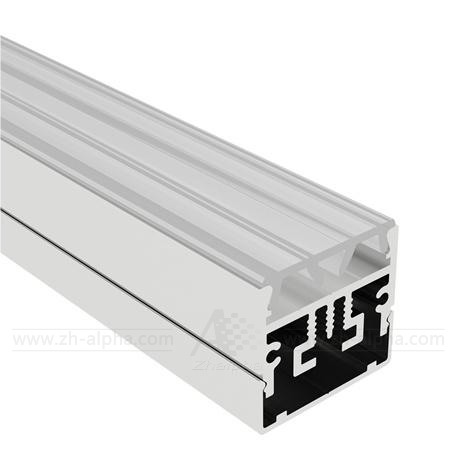

Lens Options
About Our LED Aluminum
Check below Four Main Points to get high quality Led Aluminum Proile, we chose two products of similar structure and size for comparison:
Why quality of aluminum profile and diffuser is important?
First, the thickness and weight of aluminum determines whether the housing can fully heat dissipation, timely dissipate the heat cased by LED operating, which could avoid LED stay in a long-term high temperature environment and lead to failure frequently;
Second, a good light diffuser or lens brings softer lights and optimal lighting efficient. PMMA material has higher light transmittance than PC, light more evenly, and is UV stablized, which is not easy to turn yellow after years using.
Third, The higher anodizing film thickness can avoid scraping and corrosion of aluminum.
In addition to the above four points, you also need to look at the quality of the end caps and accessories. Generally speaking, the price of aluminum end caps will be higher than that of plastic end caps.
Please click here to understand what makes our aluminum profile special, and .IES file is available for all of our Led Aluminum profile models, please contact us for details.
Applications
LED wall washer Linear light fixtures are ideal for exhibitions, hotels, kitchens, cinema, showroom and many other commercial lighting applications.
Packing
Shipping & Payment
About Alpha
WHO WE ARE?
Alpha (Zhuhai) Optical Co., Ltd. is a premier manufacturer with R&D and production in one, specializing in precision and optical plastic extrusion, injection molding, and custom product processing. With 20+ years manufacturer in plastic extrusion and 10+ years experience in lighting, we help guide lighting OEM manufacturers get optimal solution.
We still have more designs, please contact us to have a look.
