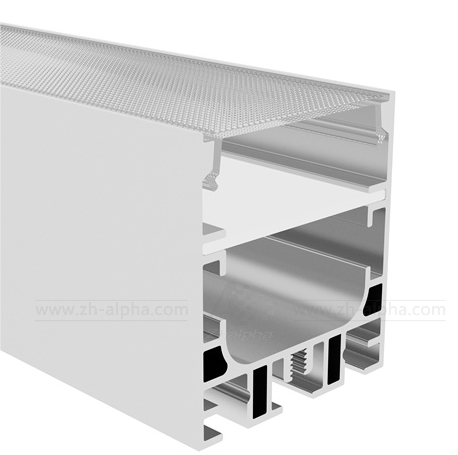

PENDANT(SURFACE) Series
Features
Heavy Aluminum quantity to ensure real heat dissipation: the heat is taken away much faster to avoid frequent LED failures.
Using the highest standard 6063-T6 aluminum, which is stronger than 6063-T5, and the deep anodizing (more than 12μm)of the profile protects the aluminum against corrosion, extends durability, and provides more scratch resistance during transportation and handling.
Possibility of suspending or mounting directly to a surface using system offered by Alpha.
Lighting fixtures can be connected into linear and polygonal lighting lines.
Three different lens options available for softer and anti-glare requirements, all diffusers and lens are UV stablized, no inclusions or scratches on the surface.

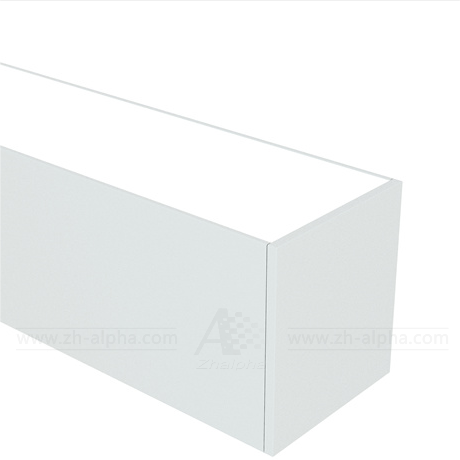

(1) PMMA Matt Diffuser (Softer Light)

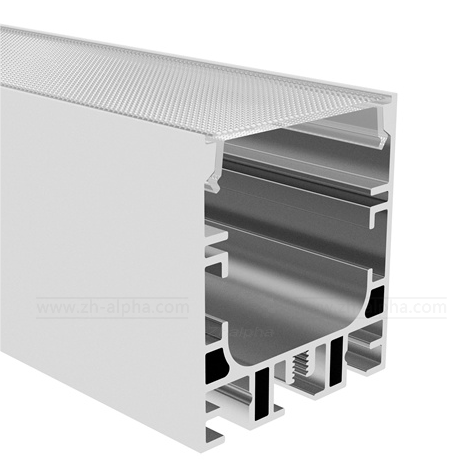

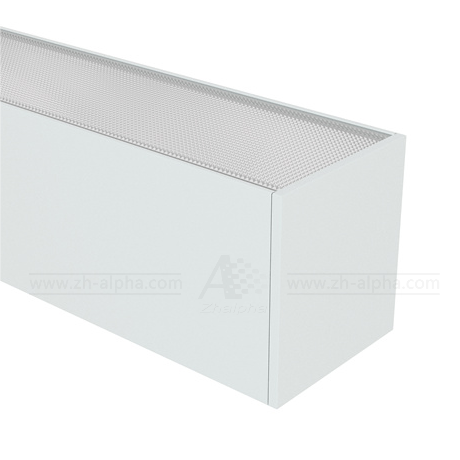

(2) Micro Prismatic Lens (Low Glare)

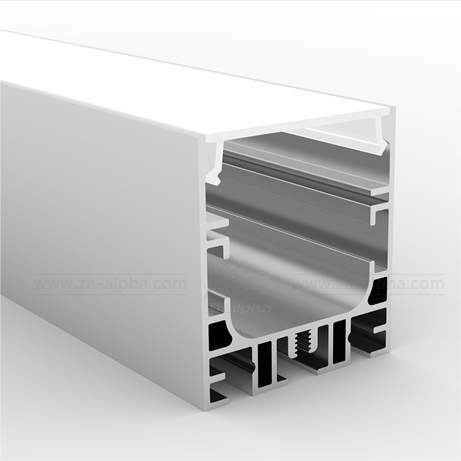

(3) Prism Lens + Optics Diffusion sheet (Low Glare)
Descriptions
Material: AL6063-T6
Surface Processing: Anodizing
Lens Options: PMMA Matt Diffuser / Micro Prismatic Lens / Prism Lens + Optics Diffusion sheet
Standard Length: 2 meters/3 meters/ 6 meters, other length could be custom
Installation: Suspension or Surface mounting
Usually one meter contains the following items:
Aluminum profile x 1 pieces
Lens x 1 pieces
Endcap x 2 pieces
Mounting kit x 1 Set
Check below Four Main Points to get high quality Led Aluminum Proile, we chose two products of similar structure and size for comparison:
Why quality of aluminum profile and diffuser is important?
First, the thickness and weight of aluminum determines whether the housing can fully heat dissipation, timely dissipate the heat cased by LED operating, which could avoid LED stay in a long-term high temperature environment and lead to failure frequently;
Second, a good light diffuser or lens brings softer lights and optimal lighting efficient. PMMA material has higher light transmittance than PC, light more evenly, and is UV stablized, which is not easy to turn yellow after years using.
Third, The higher anodizing film thickness can avoid scraping and corrosion of aluminum.

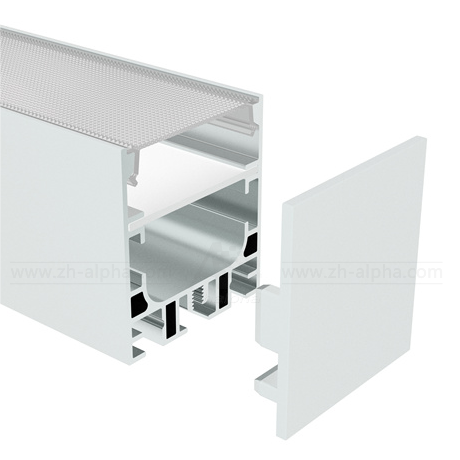

In addition to the above four points, you also need to look at the quality of the end caps and accessories. Generally speaking, the price of aluminum end caps will be higher than that of plastic end caps.
Please click here to understand what makes our aluminum profile special, and .IES file is available for all of our Led Aluminum profile models, please contact us for details.

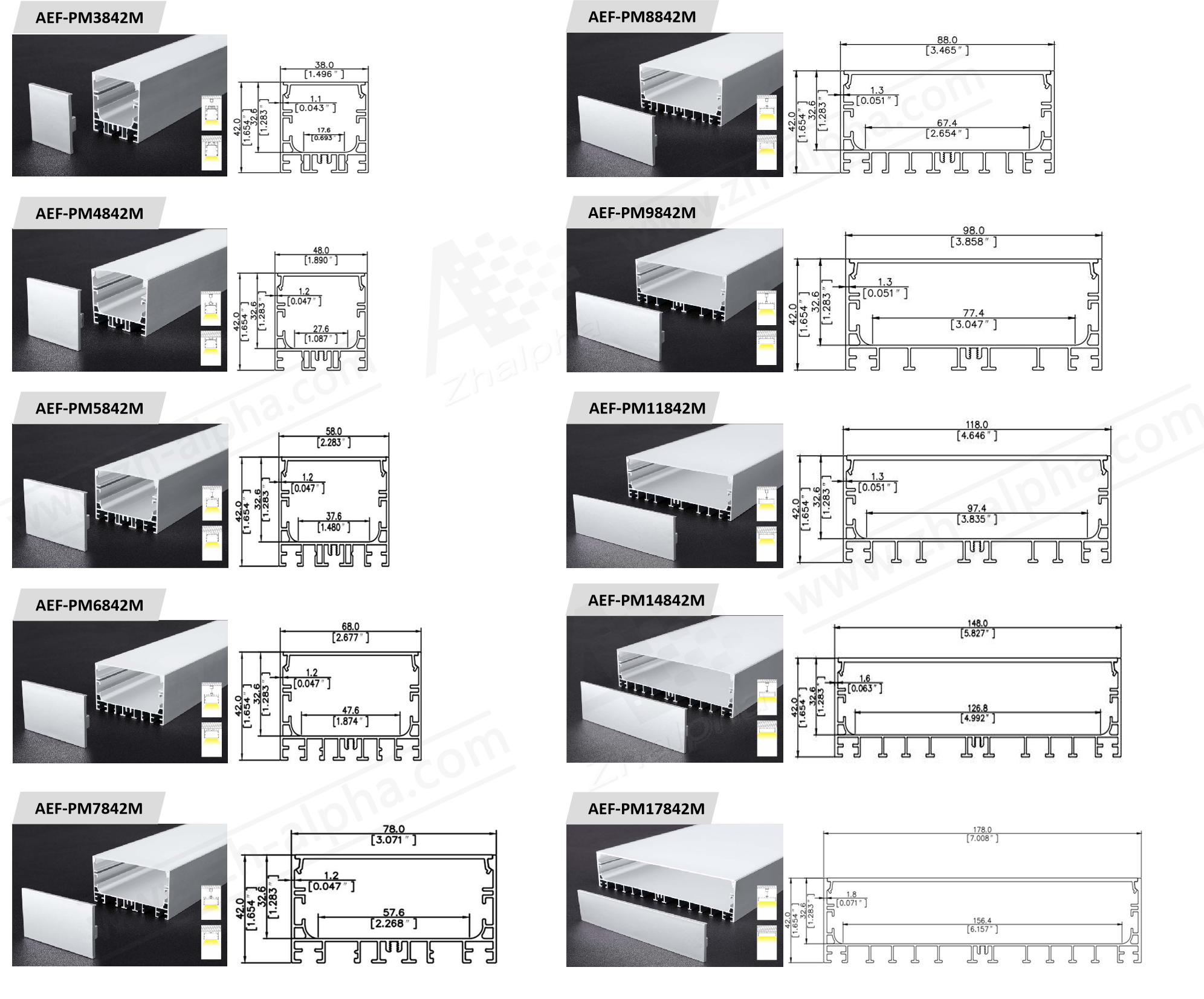

More Size Options
Coding principle: (Take the AEF-PM3842M as a example)
AEF-PM: means it is standard model from Alpha Company.
3842: means the aluminum profile width is 38mm, height is 42mm
M: means the aluminum profile is for suspension or surface installation
Connection
Lighting fixtures can be connected into linear and polygonal lighting lines with different connectors, all of our led aluminum profile models are available in L, X, Y, T shaped connectors, please contact us for more details.
Applications
LED Linear light fixtures are ideal for offices, meeting rooms, supermarket, cinema, showroom and many other commercial lighting applications.

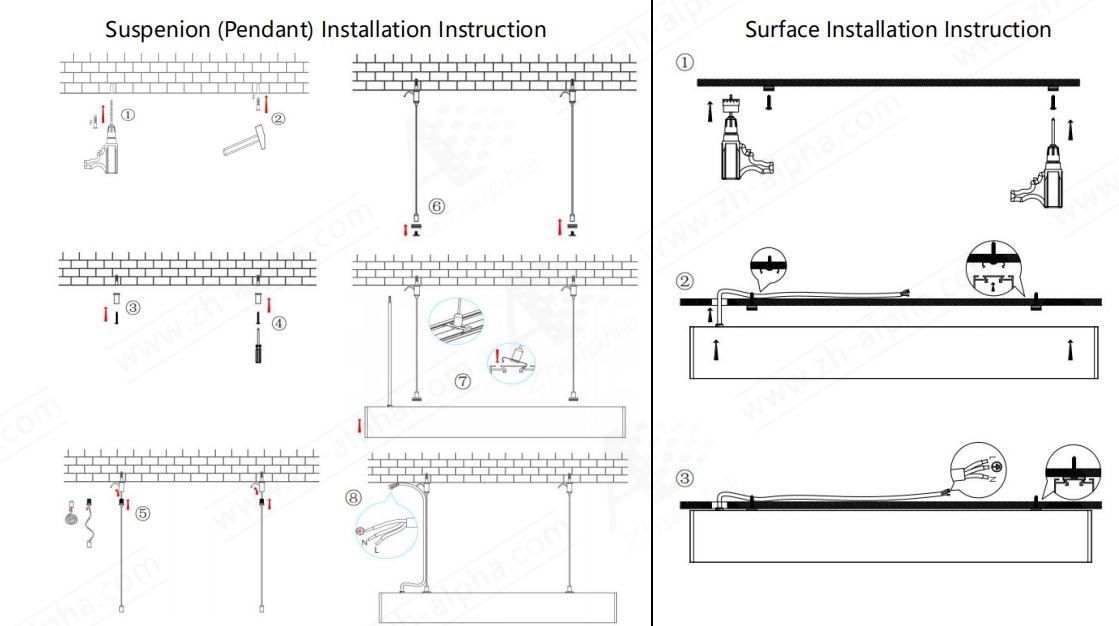

Installation Instructions
Packing
Shipping & Payment
About Alpha
WHO WE ARE?
Alpha (Zhuhai) Optical Co., Ltd. is a premier manufacturer with R&D and production in one, specializing in precision and optical plastic extrusion, injection molding, and custom product processing. With 20+ years manufacturer in plastic extrusion and 10+ years experience in lighting, we help guide lighting OEM manufacturers get optimal solution.
We still have more designs, please contact us to have a look.
